Products
AlarmPannel
COMPONENTS
REFERENCES
FEATURES
Power supply: 9-30 volts
Cable length : 2.50m
Manages up to 24 sensors
Safety check "sensor battery low"
Programmable motion alarms
Built-in buzzer
Operating temperatures : -25°C à +60°C
Fixings: 2 tapped screws Ø 5mm, centre distance 32mm
Frequency : 2.4 Ghz
Dimensions : 54x54x20mm
Approvals : EMC 2014/30/EU, R10, CE 93/68/EEC, AES5, ECER118.02, UL 94 (V-0, ECE-R10, 2004/108/EC, 93/68/EEC),
EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014 / 3-3:2013, radio EN 300 328 V2.1.1(2016-11), EMC EN 301 489-1 / 489-17 V3.2.0 (2017-03),
EN 62311:2008, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN IEC 63000:2018, BS EN IEC 62311:2020
Sensor dimensions : Ø 57mm / height 18mm
Magnet dimensions : Ø 40mm - height : 15mm
Frequency : 2.4Ghz
Battery life : up to 5 years
Protection class : IP67
Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)
DOCUMENTATION
VIDÉO
C
C
B
ALARMPANNEL
The Alarm Panel is an intelligent multi-functional safety system that provides visual and audible feedback to the cabin on the status of your vehicle's doors, covers, lockers, tail lifts and steps. Easy to install and set up, it is compatible with Hyphen Tech's wireless magnetic and contact detection sensors. Equipped with an accelerometer, the alerts can be conditioned to the accelerations of the vehicle without any connection to the driving organs.COMPONENTS
B |
 |
Multi-functional AlarmPannel system |
C |
 |
Wireless magnetic opening sensor |
| E1926 | Multi-functional AlarmPannel system (1 display + screw-on bracket + power supply) |
| E6818 | Wireless magnetic opening sensor |
| E8188 | Digital input sensor |
AlarmPannel display device
Wireless sensor
Datasheet - AlarmPannel (UK)
Manual - AlarmPannel (UK)

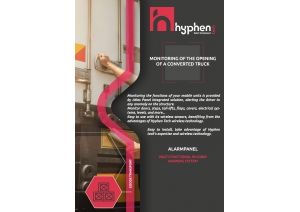

Presentation - AlarmPannel (UK)
