WIRED ECO OPEN SIDE PANNEL DETECTION KIT

The Hyphen Tech DPO system enables your hydraulic tipper to comply with JORF notice n°0172 of 14 July 2020 (text n°80). This wired kit can be installed quickly and economically with its fully pre-wired components.
The DPO controller can manage from 1 to 2 panels, giving a common buzzer alert and an indicator alert (buzzer and indicators not included).
It can also be connected to the body builder Can bus interface to control alerts and speed limits the vehicle.

COMPONENTS
A
Atlas connect controller
C
Pre-wired inductive sensor 15 meters
Pre-wired indicator and buzzer
REFERENCES
E1915 Wired opening detection kit for 1 side panel - ready to install (wired DPO controller + 1 pre-wired sensor + pre-wired indicator and buzzer)
E1916 Wired opening detection kit for 2 side panels - ready to install (wired DPO controller + 2 pre-wired sensors + pre-wired indicator and buzzer)
FEATURES

Atlas Connect DPO controller

  • Supply voltage: 9-30 volts
  • Maximum number of sensors supported: 2
  • Sensor included: 1
  • Sensor presence check security
  • 1 PTO input available to take into account the activation of the hydraulics
  • Common buzzer/indicator outputs
  • Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert
  • Can be configured via mobile application
  • Protection against reverse polarity and load-dump
  • Operating temperature: -20°C to +70°C
  • Relay durability: 30,000 operations (for 1800 op/hours)
  • Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003
  • DEUTSCH connector type DTM 12-pole
  • Protection class: IP69K
  • Dimensions: 119x133x35mm
  • Inductive sensor

  • Dimension : Ø 45mm
  • Thread : M30 x 1.5
  • Max. detection distance : 15mm
  • Protection class : IP67
  • DOCUMENTATION

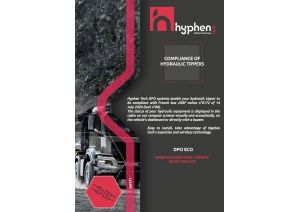

    Datasheet - DPO Eco (UK)
    Manual - DPO Eco (UK)
    VIDEO
    Présentation - DPO (FR)
    Tutorial - DPO (FR)
