Products Wireless side panel open detection system for disposable skips (DPO auto)
C2
C1
A

WIRELESS SIDE PANEL OPEN DETECTION SYSTEM FOR DISPOSABLE SKIPS (DPO auto)

The Hyphen Tech DPO auto system allows you to bring your hydraulic tipper into compliance with French law JORF notice n░0172 of 14 July 2020 (text n░80).
The DPO auto controller can manage from 1 to 2 side panels, providing a common buzzer alert and a warning light for the first 2 side panels, as well as a tipper presence indicator on the vehicle (buzzer and warning lights not included).
It can also be connected to the body builder Can bus interface to control alerts and speed limits the vehicle.

COMPONENTS
A
Atlas Connect controller
C1
Wireless tipper presence sensor
C2
Wireless opening sensor
6m cable harness
REFERENCES
E8051 Kit for a removable laod dump on a wing (DPO controller + 1 wing sensors kit)
E8054 Kit for a removable load dump on two wings (DPO controller + 2 wings sensors kit)
E1261 6m cable harness
E8139 Additional sensor kit for single wing removable load dump
E8156 Additional sensor kit for two wings removable load dump
FEATURES

Atlas Connect DPO controller

  • Supply voltage: 9-30 volts
  • Maximum number of sensors supported: 3
  • Sensor included: 2
  • Low sensor battery check security
  • Sensor presence check security
  • 1 PTO input available to take into account the activation of the hydraulics
  • Common buzzer/indicator outputs
  • Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert
  • Can be configured via mobile application
  • Protection against reverse polarity and load-dump
  • Operating temperature: -20░C to +70░C
  • Relay durability: 30,000 operations (for 1800 op/hours)
  • Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003
  • DEUTSCH connector type DTM 12-pole
  • Protection class: IP69K
  • Dimensions: 119x133x35mm
  • Wireless sensor

  • Sensor dimensions : ě 57mm / height 18mm
  • Magnet dimensions : ě 40mm - height : 15mm
  • Frequency : 2.4Ghz
  • Battery life : up to 5 years
  • Protection class : IP67
  • Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)
  • Cable harness

  • Cable length: 6m
  • DOCUMENTATION

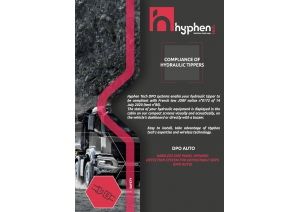

    Datasheet - DPO Auto (UK)
    Manual - DPO Auto (UK)
    Manual - DPO Pre-wired harness (UK)
    VIDEO
    Presentation - DPO Auto (UK)
