Products 6-function automatic opening detection controller (DPO 6)

6-FUNCTION AUTOMATIC OPENING DETECTION CONTROLLER (DPO 6)

The Hyphen Tech DPO6 system monitors the systems that make up your hydraulic tipper for up to 6 functions (side panels, Tipper Lift, Side Tilt, Underride Bar, Tarpaulin, Rear Door).
The DPO controller can manage up to 6 sensors located onto the vehicle, sending alerts on the dashboard via buzzers, lights, or by visual display and sound on VISIO touch screen (buzzer, light and screen sold separately).
DPO6 can also be connected to the bodywork interface to control alerts and speed limits on the vehicle.

COMPONENTS

A		Atlas Connect DPO6 controller
B		Visio touchscreen display device
C		Wireless opening sensor
		6m cable harness

REFERENCES

E8013	6-function security kit DPO6 (DPO6 controller + 1 sensor)
E1929	VISIO touchscreen display for tippers and roll-off containers
E1933	VISIO2 tatile display for towable tippers
E1261	6m cable harness
E6818	Additional wireless opening sensor

FEATURES

Atlas Connect DPO6 controller

Supply voltage: 9-30 volts

Maximum number of sensors supported: 6

Sensor included: 1

Compatible with Visio and Visio2 screens

Low sensor battery check security

Sensor presence check security

1 PTO input available to take into account the activation of the hydraulics

Common buzzer/indicator outputs

Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert

Can be configured via mobile application

Protection against reverse polarity and load-dump

Operating temperature: -20°C to +70°C

Relay durability: 30,000 operations (for 1800 op/hours)

Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003

DEUTSCH connector type DTM 12-pole

Protection class: IP69K

Dimensions: 119x133x35mm

Visio display device

Power supply voltage: 9-30 volts

Functions supported: Tipper, underride protection, Cover, Rear door

Operating temperatures: -25°C to +60°C

Dimensions : 54x54x20mm

Fixings : 2 studs 40 x Ø 5mm, distance between centres 32mm

Cable length : 2.50m

Frequency : 2.4 Ghz

Approvals : EMC 2014/30/EU, R10, CE 93/68/EEC, AES5, ECER118.02, UL 94 (V-0, ECE-R10, 2004/108/EC, 93/68/EEC), EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014 / 3-3:2013, radio EN 300 328 V2.1.1(2016-11), EMC EN 301 489-1 / 489-17 V3.2.0 (2017-03), EN 62311:2008, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN IEC 63000:2018, BS EN IEC 62311:2020

Wireless sensor

Sensor dimensions : Ø 57mm / height 18mm

Magnet dimensions : Ø 40mm - height : 15mm

Frequency : 2.4Ghz

Battery life : up to 5 years

Protection class : IP67

Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)

Cable harness

Cable length: 6m

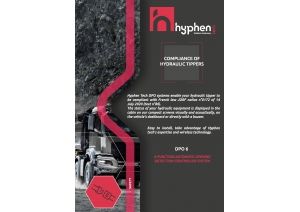

DOCUMENTATION
