Products Wireless open side panel detection system (DPO)
C
A

WIRELESS OPEN SIDE PANEL DETECTION SYSTEM (DPO)

The Hyphen Tech DPO system enables your hydraulic tipper to comply with French law JORF notice n░0172 of 14 July 2020 (text n░80).
The DPO controller can manage from 1 to 3 panels, providing a common buzzer alert and a warning light for the first 2 buckets (buzzer and warning lights not included).
It can also be connected to the carousel interface to control alerts and speed limits on the vehicle.


COMPONENTS
A
Atlas Connect controller
C
Wireless opening sensor
6m cable harness
REFERENCES
E7898 Kit for hydraulic side panel (DPO controller + 1 sensor)
E1261 6m cable harness
E6818 Wireless opening sensor
FEATURES

Atlas Connect DPO controller

  • Supply voltage: 9-30 volts
  • Maximum number of sensors supported: 3
  • Sensor included: 1
  • Low sensor battery check security
  • Sensor presence check security
  • 1 PTO input available to take into account the activation of the hydraulics
  • Common buzzer/indicator outputs
  • Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert
  • Can be configured via mobile application
  • Protection against reverse polarity and load-dump
  • Operating temperature: -20░C to +70░C
  • Relay durability: 30,000 operations (for 1800 op/hours)
  • Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003
  • DEUTSCH connector type DTM 12-pole
  • Protection class: IP69K
  • Dimensions: 119x133x35mm
  • Wireless sensor

  • Sensor dimensions : ě 57mm / height 18mm
  • Magnet dimensions : ě 40mm - height : 15mm
  • Frequency : 2.4Ghz
  • Battery life : up to 5 years
  • Protection class : IP67
  • Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)
  • Cable harness

  • Cable length: 6m
  • DOCUMENTATION

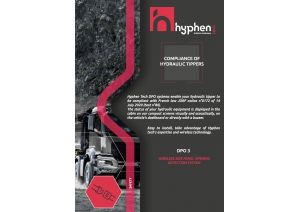

    Datasheet - DPO Kit (UK)
    Manual - DPO Kit (UK)
    Manual - DPO Pre-wired harness (UK)
    VIDEO
    Presentation - DPO (UK)
    Tutorial - DPO (UK)
