VISIO CABIN TOUCHSCREEN KIT FOR TIPPER TRUCKS

Wireless cabin display and warning device compatible with the 6-function kit DPO 6 or DPO auto.
Visio has been specially designed to monitor the status of the elements of a tipping or removable dual-purpose vehicle.
Any anomalies are indicated visually and acoustically on the device.

COMPONENTS
B
Visio touchscreen display device
A
Atlas Connect DPO6 controller
C
Magnetic opening sensor
6m cable harness
REFERENCES
E1929 VISIO touchscreen display for tippers and roll-off containers
E8013 6-function security kit DPO6 (DPO6 controlleur + 1 sensor)
E1261 6m cable harness
E6818 Additional magnetic opening sensor
FEATURES

Visio display device

  • Power supply voltage: 9-30 volts
  • Fonctions supportées : Tipper, Side panels, underride protection, Cover, Rear door
  • Operating temperatures: -25°C to +60°C
  • Dimensions : 54x54x20mm
  • Fixings : 2 studs 40 x Ø 5mm, distance between centres 32mm
  • Cable length : 2.50m
  • Frequency : 2.4 Ghz
  • Approvals : EMC 2014/30/EU, R10, CE 93/68/EEC, AES5, ECER118.02, UL 94 (V-0, ECE-R10, 2004/108/EC, 93/68/EEC), EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014 / 3-3:2013, radio EN 300 328 V2.1.1(2016-11), EMC EN 301 489-1 / 489-17 V3.2.0 (2017-03), EN 62311:2008, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN IEC 63000:2018, BS EN IEC 62311:2020

    • Atlas Connect DPO6 controller

  • Supply voltage: 9-30 volts
  • Maximum number of sensors supported: 6
  • Sensor included: 1
  • Compatible with Visio and Visio2 screens
  • Low sensor battery check security
  • Sensor presence check security
  • 1 PTO input available to take into account the activation of the hydraulics
  • Common buzzer/indicator outputs
  • Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert
  • Can be configured via mobile application
  • Protection against reverse polarity and load-dump
  • Operating temperature: -20°C to +70°C
  • Relay durability: 30,000 operations (for 1800 op/hours)
  • Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003
  • DEUTSCH connector type DTM 12-pole
  • Protection class: IP69K
  • Dimensions: 119x133x35mm

    • Wireless sensor

  • Sensor dimensions : Ø 57mm / height 18mm
  • Magnet dimensions : Ø 40mm - height : 15mm
  • Frequency : 2.4Ghz
  • Battery life : up to 5 years
  • Protection class : IP67
  • Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)

    • Harness

  • Length: 6 meters

    • DOCUMENTATION

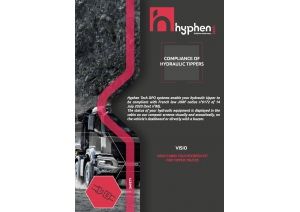

    Datasheet - Visio kit (UK)
    Manual - Visio kit (UK)
    Manual - DPO6 KIT (UK)
    Manual - DPO Pre-wired harness (UK)
