Products Visio 2 display device for 6 functions kit on towable tipper

VISIO2 DISPLAY DEVICE FOR 6 FUNCTIONS KIT ON TOWABLE TIPPER

Wireless cabin display and warning device compatible with the 6-function DPO 6 kit.
Visio2 has been specially designed to monitor the status of the various elements of a towable tipper with pairing between the trailer and the tractor.
Anomalies are reported visually and audibly to the device.

COMPONENTS

B		Visio2 touchscreen display device
A		Atlas Connect DPO6 controller
C		Magnetic opening sensor
		6m cable harness

REFERENCES

E1933	Visio2 touchscreen display device for towable tippers
E8013	6-function opening detection controller (DPO6 controller + 1 sensor)
E1261	6m cable harness
E6818	Additional magnetic opening sensor

FEATURES

Visio display device

Power supply voltage: 9-30 volts

Functions supported: Tipper, underride protection, Cover, Rear door

Operating temperatures: -25°C to +60°C

Dimensions : 54x54x20mm

Fixings : 2 studs 40 x Ø 5mm, distance between centres 32mm

Cable length : 2.50m

Frequency : 2.4 Ghz

Approvals : EMC 2014/30/EU, R10, CE 93/68/EEC, AES5, ECER118.02, UL 94 (V-0, ECE-R10, 2004/108/EC, 93/68/EEC), EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014 / 3-3:2013, radio EN 300 328 V2.1.1(2016-11), EMC EN 301 489-1 / 489-17 V3.2.0 (2017-03), EN 62311:2008, EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, EN IEC 63000:2018, BS EN IEC 62311:2020

Atlas Connect DPO6 controller

Supply voltage: 9-30 volts

Maximum number of sensors supported: 6

Sensor included: 1

Compatible with Visio and Visio2 screens

Low sensor battery check security

Sensor presence check security

1 PTO input available to take into account the activation of the hydraulics

Common buzzer/indicator outputs

Compatible with original bodybuilder interfaces to limit vehicle speed and activate a dashboard alert

Can be configured via mobile application

Protection against reverse polarity and load-dump

Operating temperature: -20°C to +70°C

Relay durability: 30,000 operations (for 1800 op/hours)

Approvals: ECE-R10, RED 2014/53/EU, Volvo Group Standard STD 515-0003

DEUTSCH connector type DTM 12-pole

Protection class: IP69K

Dimensions: 119x133x35mm

Wireless sensor

Sensor dimensions : Ø 57mm / height 18mm

Magnet dimensions : Ø 40mm - height : 15mm

Frequency : 2.4Ghz

Battery life : up to 5 years

Protection class : IP67

Approvals : EMC EN 301 489-17 V3.2.0, EN 301 489-3 V2.1.1 / 489-1 V2.2.0, radio EN 300 328 v2.2.0, EN 62368, RoHS (2002/95/EC)

Cable harness

Cable length: 6m

DOCUMENTATION

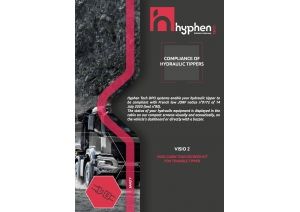

Datasheet - VISIO 2 (UK)

Manual - DPO6 KIT (UK)

Manual - DPO Pre-wired harness (UK)

VIDEO

Presentation - DPO (FR)
